Free floating ball drain valve (flange)

Product overview

Product model: CS41H
Nominal diameter: DN15~50mm
Nominal pressure: PN1.6~4.0MPa
Working temperature: ≤350℃
Main materials: forged steel, stainless steel, titanium alloy steel, chromium molybdenum steel, low temperature steel
Drive mode: manual

Product Detail

This product is based on the principle of buoyancy, causing the floating ball in the valve body to move up and down with changes in water level, in order to achieve the function of valve opening and closing, i.e. drainage and steam blocking.


◆ Capable of continuous drainage, stable performance, large drainage capacity, and low air leakage.


◆ Capable of continuously saturating water, resulting in less stagnant condensed water in the equipment, fast heating, and stable heating temperature.


◆ There is an automatic cooling air exhaust device, without Air lock, and there is no noise in working balance.

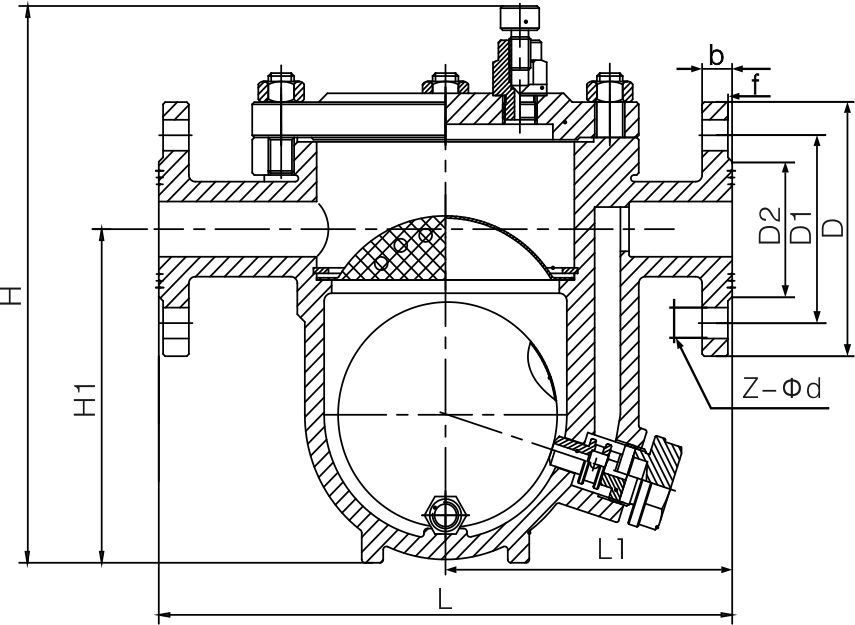

Free floating ball drain valve (flange)(圖1)

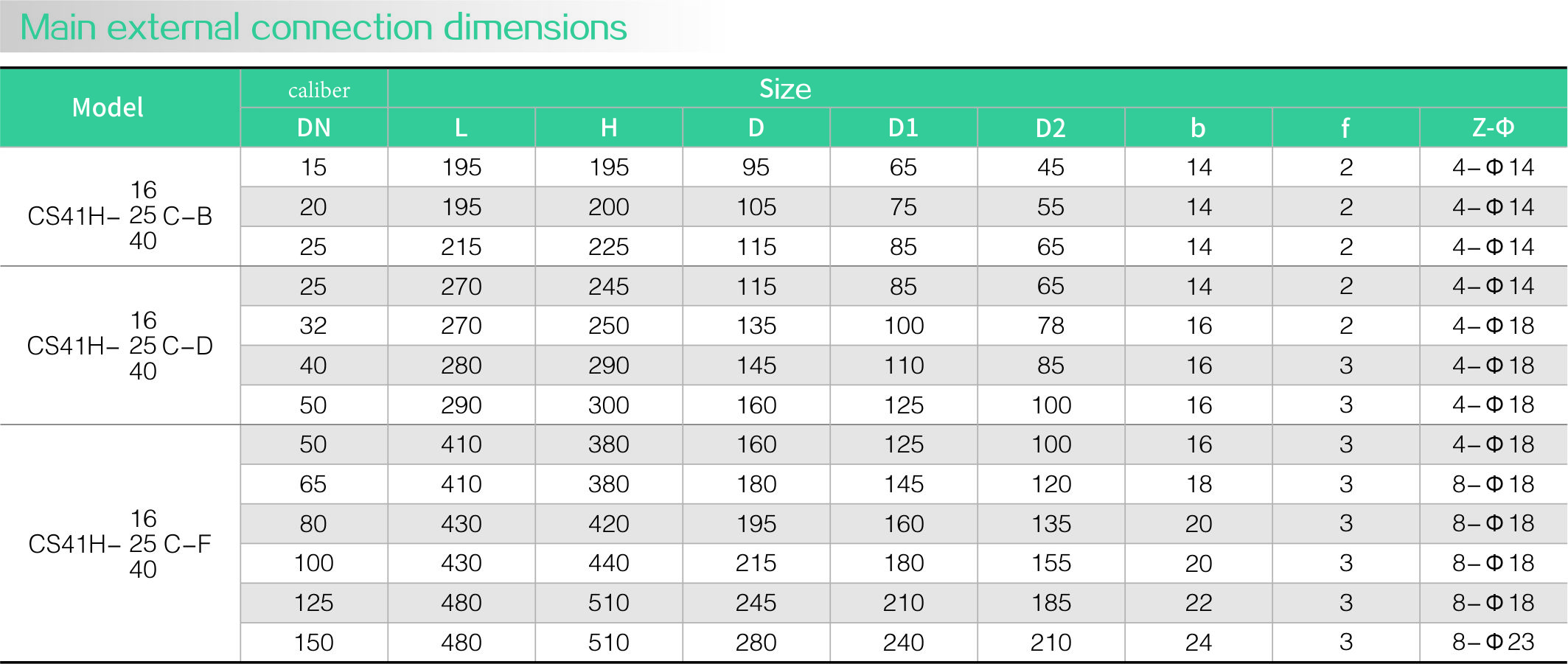

Free floating ball drain valve (flange)(圖2)
